Name: ReBel fully integrated shaft gearbox - size 105
Brand: igus®
SKU: RBTX-IGUS-0185
Price: 9,235.71 SEK
Availability: InStock

fairBanner

CommunityDesignLink

showCommunityLink

rbtxpert-button-de

rbtxpert-button-us

<ul>
<li>Fully integrated individual gearbox with motor, control system and encoder</li>
<li>Output with encoder and mounting flange</li>
<li>Brushless DC motor (external rotor)</li>
<li>CAN-BUS motor driver board</li>
<li>25% lighter than conventional strain wave gears thanks to igus® high-performance polymers</li>

ReBel fully integrated shaft gearbox - size 105

Accessories

CAD file

Technical drawing

Assembly instruction

Technical datasheet

BDLC Board user manual

Vendor link

4UXHOnEduKaBx7orh4tMk6

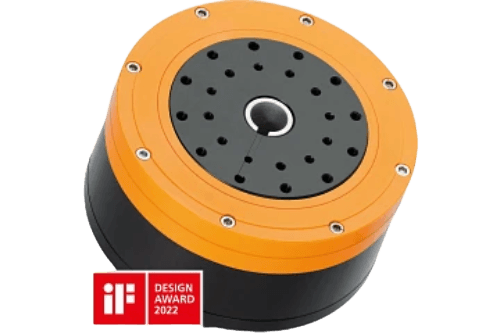

The igus® shaft gear is the heart of the ReBel cobot.

It received an IF Design Award in 2022 for the development of the lubrication-free gearbox, which is intended to replace metal and aluminium in a cost-saving manner.
