Name: 2-Axis Delta | Large
Brand: igus®
SKU: RBTX-IGUS-0059
Price: 106,855.91 SEK
Availability: InStock

fairBanner

CommunityDesignLink

showCommunityLink

rbtxpert-button-de

rbtxpert-button-us

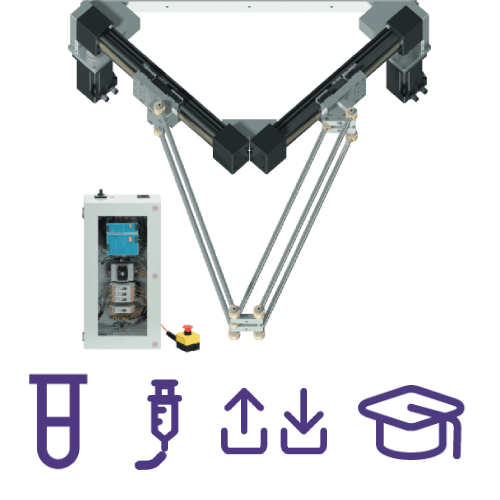

The 2-axis Delta was specially developed for extra fast pick & place tasks. It can be used for pick and place tasks, conveyor belt picking, sorting tasks or stacking tasks. The Delta robot as 2-axis kinematics is supplied in two different sizes with matching controllers.

The weight of an end effector will decrease the available payload of your robot.

2-Axis Delta | Large

Robots

CAD file

Technical drawing

Technical documentation

igus Robot Control manual

Vendor link

3hLrW9vPiJI3MoDO1KlPzr

This set enables you to control the robolink® robot arm. With the corresponding software, you can programme and move the robot via a graphical user interface.   Main features:

Modular control and Software

Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)

Download now and try it out in advance

The Delta robots from igus® are available as 2-axis or 3-axis variants. They are suitable for pick and place, conveyor belt picking and stacking tasks in three-dimensional space. In conjunction with a gripper or suction cup and a vision system, bin picking tasks can be implemented very quickly.

You can control the robot either from your Windows 10 PC or from the optional handheld with touch screen. On the PC the robot can be programmed via a graphical user interface. With the handheld you can control the robot with a joystick and start programs via the touch screen. In addition, you can also connect a gamepad to your Windows PC for control as an alternative to the handheld. With this handheld, the robot runs autonomously without the computer after programming via the Windows PC.
